HDPE Landfill Liner
High Chemical Resistance: Excellent durability in harsh environments.
UV & Weather Resistant: Long-lasting performance outdoors.
Superior Puncture Strength: Withstands heavy loads and sharp objects.
Low Permeability: Ideal for effective seepage control.
Flexible Installation: Easy to weld and shape on-site.
Cost-Effective Solution: Long lifespan with minimal maintenance.

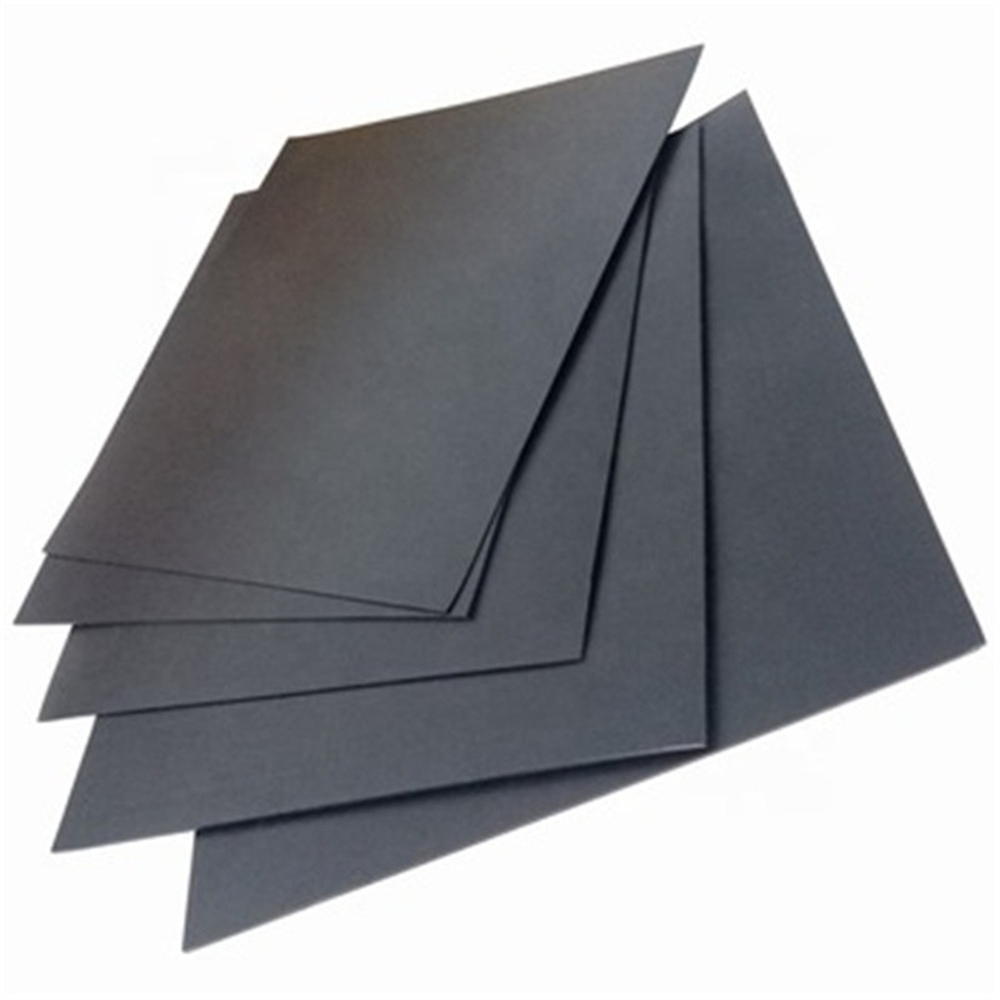

Product Introduction
Geomembrane pond liners can stop water seepage by using specific materials.
Due to its high-quality HDPE (High-Density Polyethylene) construction, this tank is ideal for seepage prevention, corrosion resistance, UV resistance, and extended service life.
Aquaculture ponds, landscape garden ponds, and agricultural irrigation ponds can all benefit from this device's ability to minimize water leaks and maximize water resources. It can also be used to safeguard the environment, for example, in small sewage treatment ponds and landfill leachate isolation, which consistently ensure both engineering safety and economic security.
Product Specifications
Thickness 0.1-3.0mm, width 1-12m, length according to engineering design and customer requirements.
Parameter | Specification |
Thickness | Smooth surface 0.1mm–3.0mm, textured surface 1.0mm–2.0mm |
Width | Smooth surface 1m–8m, textured surface 4m–8m |
Length | 30m–200m/roll or as requested |
Material | HDPE, LDPE, LLDPE |
Classification | Smooth / Rough / Composite Geomembrane |
Surface | Smooth surface, single surface textured, dual surfaces textured |
Item | Geomembrane (Customizable parameters） | ||||||||
Item | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Thickness (mm) | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Density (g/cm³) | ≥0.940 | ||||||||
Tensile yield strength (N/mm) | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
Tensile fracture strength (N/mm) | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
Elongation at yield (%) | – | – | – | – | – | – | ≥11 | – | – |
Elongation at break (%) | ≥600 | ||||||||
Right-angle tear load (N) | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
Puncture strength (N) | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
Carbon black content (%) | 2.0–3.0 | ||||||||
Application Scenarios

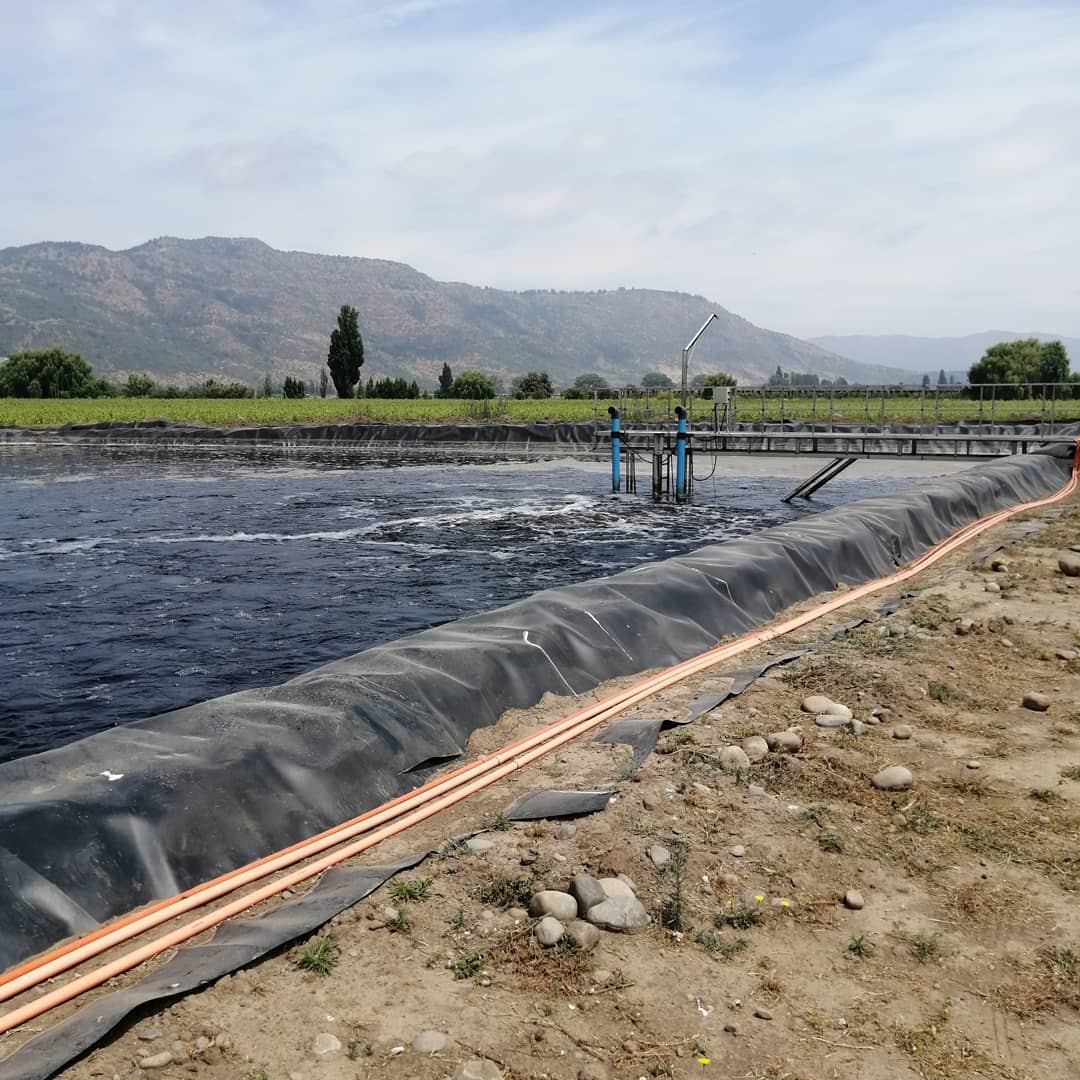

Rainwater collection tanks, small sewage treatment tanks, and garbage leachate isolation tanks in the field of ecological and environmental protection; irrigation reservoirs, rice seedling ponds, and aquaculture ponds (such as fish, shrimp, and crab ponds) in the field of agriculture; artificial lakes, landscape ponds, and courtyard viewing pools in the field of landscape architecture; additionally, it can be used in irrigation pools for home vegetable gardens, temporary water storage tanks for mines, artificial water pools for golf courses, and other situations, all of which it guarantees engineering safety and water protection.
Why choose us?
We provide engineering-specific custom solutions, actively influence industry standards, and have over 20 product patents.
From design and delivery to installation, our comprehensive support covers every aspect of construction projects.
We provide our clients with a broad range of products and contract services as a flexible single-source partner.
We also have a specialized laboratory for product testing to ensure the highest performance and quality requirements.
Packaging & Delivery
We promise timely and secure delivery thanks to our expert packaging and efficient international logistics. Items that are ready to ship are shipped quickly, and every box is carefully protected from damage.
We also offer personalized labels and round-the-clock cargo tracking upon request to enhance your shipping experience.
About Us
Shandong Yibo Yangguang Engineering Materials Co., Ltd. is a high-tech firm that specializes in the development, production, marketing, and engineering applications of geosynthetic materials. The Laiwu High-tech Zone in Jinan is where it is located.
In mining, infrastructure, energy, water management, and environmental applications, our main products—geomembranes, geotextiles, drainage boards, and geogrids—are widely used.
We serve both domestic and international markets by combining state-of-the-art production methods with knowledgeable technical support, offering complete solutions from conception to installation with a strong commitment to quality and innovation.
We combine on-site development, manufacturing, and construction services as a committed supplier of geosynthetic solutions. Our product line, which offers full material support for civil and environmental engineering projects, includes bentonite blankets, HDPE and textured geomembranes, composite liners, EVA and polymer waterproofing sheets, geotextiles (including filament and short fiber), and composite drainage nets.
