Hdpe Liner
High Chemical Resistance: Excellent durability in harsh environments.
UV & Weather Resistant: Long-lasting performance outdoors.
Superior Puncture Strength: Withstands heavy loads and sharp objects.
Low Permeability: Ideal for effective seepage control.
Flexible Installation: Easy to weld and shape on-site.。
Cost-Effective Solution: Long lifespan with minimal maintenance.
Product Introduction

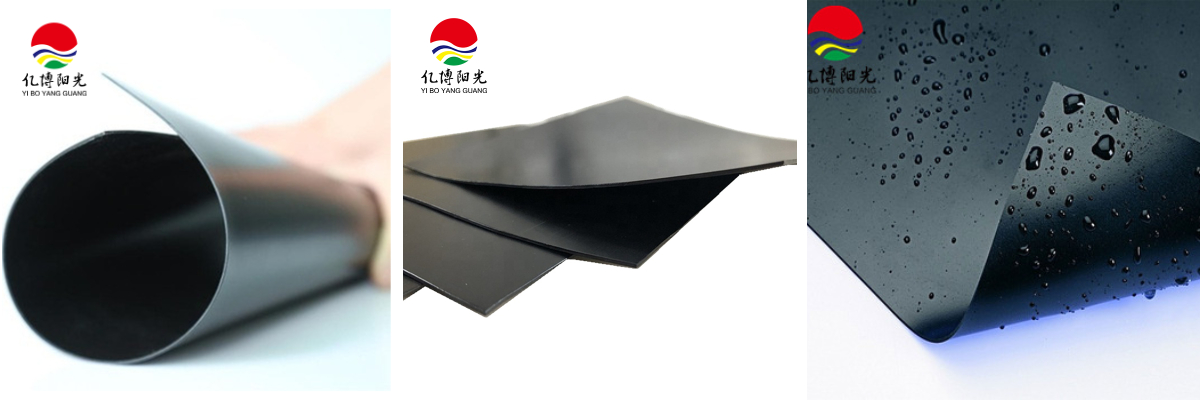

HDPE geomembranes Liner, renowned for their exceptional crack resistance – with authoritative testing confirming GM13 crack resistance duration exceeding 1500 hours, standing firm against stress challenges in complex environments. Specifically formulated with customized carbon black, they form a robust UV protection barrier, significantly enhancing stability and durability during long-term outdoor use, thus providing reliable protection for various open-air projects.
Product Specifcations
Boasting versatile specifications, our HDPE geomembranes Liner offer a thickness range of 0.1-3.0mm, paired with a width span of 1-12m to accommodate diverse project scales. For length, we provide tailored solutions based on both engineering design parameters and specific customer requirements, ensuring seamless alignment with every unique application need.
Parameter | Specification |
Thickness | Smooth surface 0.2mm–3.0mm, textured surface 1.0mm–2.0mm |
Width | Smooth surface 1m–8m, textured surface 4m–8m |
Length | 30m–200m/roll or as requested |
Material | HDPE, LDPE, LLDPE |
Classification | Smooth / Rough / Composite Geomembrane |
Surface | Smooth surface, single surface textured, dual surfaces textured |
Item | Geomembrane (Customizable parameters） | ||||||||
Item | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Thickness (mm) | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 |
Density (g/cm³) | ≥0.940 | ||||||||
Tensile yield strength (N/mm) | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
Tensile fracture strength (N/mm) | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
Elongation at yield (%) | – | – | – | – | – | – | ≥11 | – | – |
Elongation at break (%) | ≥600 | ||||||||
Right-angle tear load (N) | ≥34 | ≥56 | ≥84 | ≥115 | ≥140 | ≥170 | ≥225 | ≥280 | ≥340 |
Puncture strength (N) | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
Carbon black content (%) | 2.0–3.0 | ||||||||
Application Scenarios

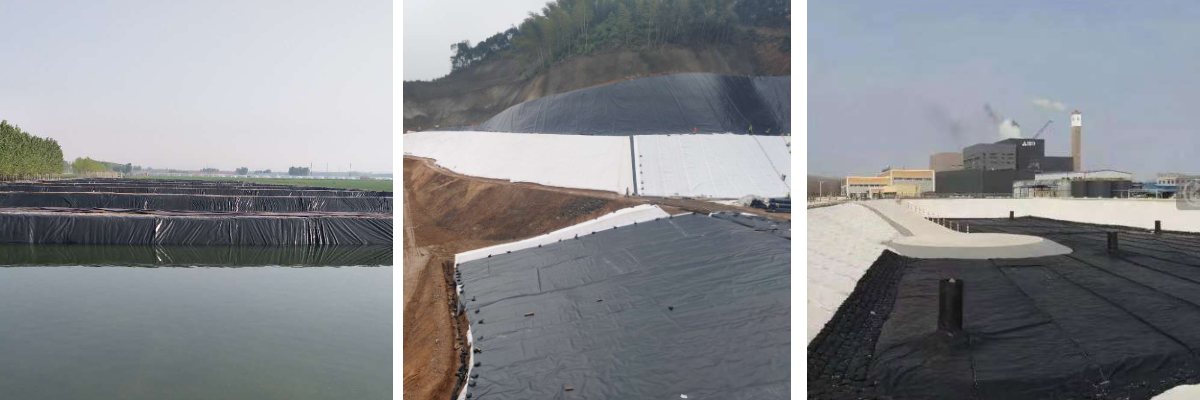

From landfill gas plant liners that seal in emissions and prevent soil contamination to aquaculture aerator pond liners that safeguard water quality and support healthy aquatic ecosystems – our HDPE liners deliver uncompromising performance.
For irrigation canal relining, they minimize water loss, boost distribution efficiency, and resist the wear of constant flow. Industrial cooling pond covers rely on their robust impermeability to contain chemicals and reduce evaporation, while community flood protection systems depend on their durability to hold back water and shield neighborhoods.
No matter the challenge, our HDPE liners provide a reliable, long-lasting barrier tailored to each critical application.

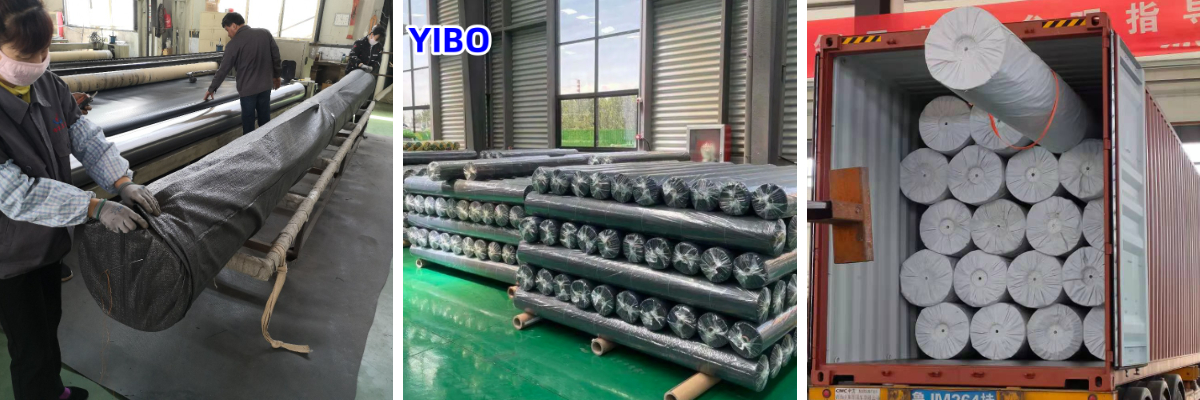

Packaging & Delivery
When it comes to our HDPE liners, seamless logistics meets unrivaled quality assurance. We offer split-pack shipping for flexible handling, paired with priority unloading services to accelerate project timelines—ensuring your liner materials arrive ready to install, right when you need them.
About Us
Shandong Yibo Yangguang Engineering Materials Co., Ltd. has a registered capital of 10 million yuan, has a building area of 6000 square meters, and employs more than 110 people. It is located in Tai'an, China. We are a leading developer, manufacturer, wholesaler, and exporter of innovative geomembranes and geosynthetic materials, with over 20 years of experience and an ISO quality control system. Our products have been successfully applied to numerous projects of our customers, including fish ponds, dams, water treatment, land, oil and gas, mining, salt fields, highways, airports, railways, etc.
Many other government projects have also been completed, which can help you choose suitable products, save costs and time.
Our Services
Should unexpected issues arise, our 24/7 emergency service stands ready to resolve challenges swiftly, minimizing downtime for critical applications like flood protection systems.
As part of our commitment to sustainability, we offer eco-friendly material options alongside our standard HDPE liners, without compromising on durability or impermeability. From planning to problem-solving, we’re with you every step of the way.

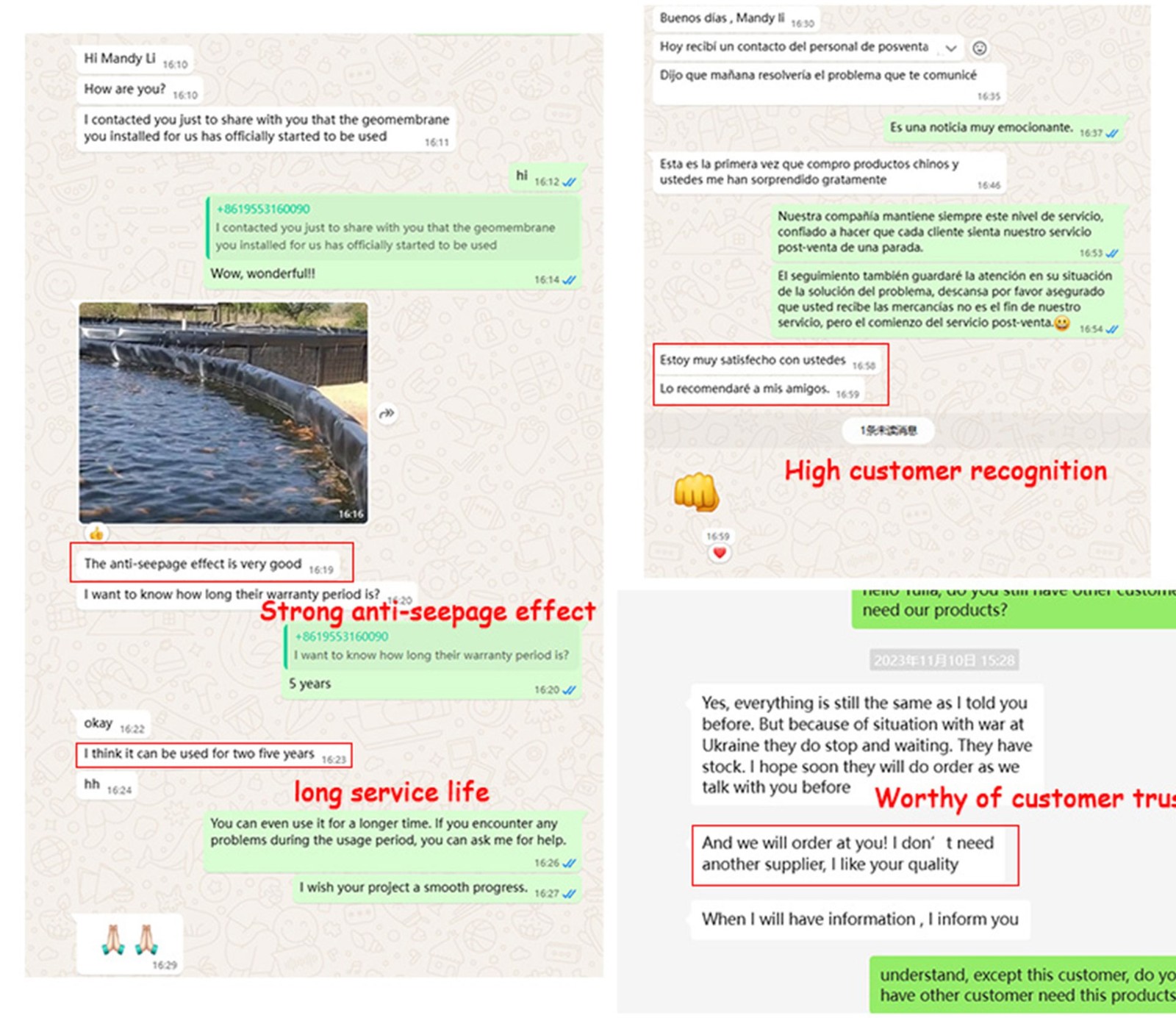

Customer feedback
